Select from our standard running specifications or request custom sizing, GSM adjustments, grommet spacing, and corporate logo printing.
Navigating the international procurement landscape for industrial-grade poly tarpaulins requires a granular understanding of dimensional engineering, polymer raw material integrity, and conversion tolerances. As global logistics networks, construction enterprises, and mega-scale agricultural operations demand higher tear thresholds and weatherproofing longevity, selecting a reliable China heavy duty tarp sizes supplier & suppliers becomes a strategic imperative.
Linyi Xinshengyang Plastic Products Co., Ltd. (operating globally as Star Tarpaulins) has spearheaded technical innovations in woven plastic textiles since 2006. Operating from our state-of-the-art 30,000 m² industrial plant in Wanggou Industrial Park, Linyi, Shandong Province, we control every link of the manufacturing value chain—from high-tenacity resin extrusion and water-jet weaving to double-sided LDPE lamination, high-frequency thermal seam sealing, and reinforced eyelet punching.
Most commercial tarpaulins lose between 3% to 5% of their nominal dimensions during the edge-folding, rope-reinforcement, and heat-sealing phases. As an ISO-compliant Chinese factory, Star Tarpaulins engineers both Nominal Cut Sizes and Exact Finished Sizes to guarantee zero operational downtime for enterprise buyers who require precise dimensional tolerances on job sites.
Whether purchasing ready-made tarp sheets with grommets or master fabric rolls for OEM converting, review our engineering specs across metric and imperial standards.
| Standard Size (Imperial) | Standard Size (Metric) | Target Fabric Weight (GSM) | Weave Density (Mesh) | Tensile Strength (Warp/Weft) | Recommended Enterprise Application |
|---|---|---|---|---|---|
| 6 ft × 8 ft / 8 ft × 10 ft | 1.8 m × 2.4 m / 2.4 m × 3.0 m | 80 – 120 GSM | 8×8 to 10×10 | ≥ 450 N / 5cm | Small Machinery Covers, DIY Hardware Retail, Light Camping Groundsheets |
| 10 ft × 12 ft / 12 ft × 16 ft | 3.0 m × 3.6 m / 3.6 m × 4.8 m | 130 – 160 GSM | 10×10 to 12×12 | ≥ 650 N / 5cm | Medium Truck Tarps, Construction Scaffolding Wraps, Utility Equipment Storage |
| 16 ft × 20 ft / 20 ft × 30 ft | 4.8 m × 6.0 m / 6.0 m × 9.0 m | 180 – 220 GSM | 12×12 to 14×14 | ≥ 950 N / 5cm | Agricultural Hay Stack Caps, Industrial Site Weatherproofing, Freight Tarps |
| 30 ft × 50 ft / 40 ft × 60 ft | 9.0 m × 15.0 m / 12.0 m × 18.0 m | 240 – 300 GSM | 14×14 Heavy Duty | ≥ 1300 N / 5cm | Port Cargo Stockpiles, Marine Flatbed Wraps, Emergency Disaster Relief Tents |
| 50 ft × 100 ft (Ultra Heavy) | 15.0 m × 30.0 m Custom | 450 – 900 GSM (PVC) | 1000D×1000D Polyester | ≥ 2200 N / 5cm | Heavy Trailer Side Curtains, Temporary Warehousing, Mining Containment Liners |
| Master Roll Widths | 2.0 m, 4.0 m, 6.0 m × 100 m | 60 – 300 GSM PE/PP | Customized Weave | ISO 1421 Tested | Industrial Converters, Custom Tent Fabric Manufacturers, Bag Producers |
Buyers must distinguish between Cut Size (the dimensions of the raw fabric sheet prior to conversion) and Finished Size (the final size after side seams are turned over a poly cord and heat-sealed). Star Tarpaulins offers clear dual-labeling to eliminate discrepancy in procurement contracts.
Standard tarp eyelets are installed at 100 cm (39 in) intervals. For heavy-duty industrial covers, we engineer reinforced aluminum, brass, or molded plastic grommets positioned every 50 cm (18 in) or 30 cm along double-stitched or hot-air welded polypropylene rope hems.
For large-scale tarp dimensions exceeding 6 meters in width, our automated hot-air thermal seamers create 100% molecular-bonded waterproof joins that possess identical tensile strength to the primary coated fabric, eliminating seam leakage risks.
Linyi City in Shandong Province is internationally recognized as the premier manufacturing and logistics epicenter for plastic woven products in Asia. Sourcing directly from an established primary factory like Star Tarpaulins (Linyi Xinshengyang Plastic Products Co., Ltd.) offers distinct structural advantages over sourcing through intermediary trading companies:
Every production batch undergoes rigorous hydrostatic pressure testing (exceeding 10,000 mm H₂O), confirming complete impermeability along both flat fabric and thermal weld seams under extreme tropical rain pressure.
For construction enclosures and indoor warehousing, our heavy-duty PE and PVC tarpaulins can be engineered to comply with international fire retardancy standards including NFPA 701, DIN 4102 B1, and CPAI-84.
To prevent eyelet tear-out under severe wind stress, all four corners of our heavy-duty sheets are reinforced with molded plastic triangular patches riveted securely through multiple fabric layers.
From raw HDPE/PP granules to final container loading, every square meter of tarpaulin is tracked and tested to guarantee strict adherence to dimensional and tensile specifications.
Discover how engineered tarp dimensions and material densities deliver maximum protection across diverse global sector requirements.
Over-the-road freight trucks require tarpaulins engineered for high abrasion resistance and aerodynamic tensioning. Standard dimensions such as 8m × 10m and 10m × 12m in 200–280 GSM PE or 650 GSM PVC feature reinforced D-rings and webbing straps to ensure cargo stays 100% dry during long-haul transit.
Job-site safety regulations mandate high-strength enclosure nets and weather shields. Custom sizes like 3.6m × 5.4m and 5.4m × 5.4m blue/orange PE tarps protect workers from harsh winds while curing concrete and preventing falling debris on commercial high-rises.
Farmers in Australia, North America, and South America require massive continuous protection sheets. Heavy-duty 12m × 18m and 15m × 30m silver/black UV-stabilized tarpaulins reflect sunlight to maintain low heat levels while shedding torrential rainwater over hay bales and grain bunkers.
Saltwater environments demand non-corrosive brass grommets and dense LDPE laminations. Extra-large heavy-duty tarp sheets prevent sea-spray corrosion on break-bulk cargo containers, mining mineral stockpiles, and pleasure craft winter covers.
Working in coordination with international procurement agencies and NGOs, Star Tarpaulins manufactures standardized 4m × 6m white/grey fire-retardant relief tarps equipped with reinforced corner eyelets for rapid disaster response deployment.
Heavyweight 250+ GSM poly tarps and PP woven layflat hoses serve as cost-effective, tear-resistant temporary containment liners for agricultural irrigation ditches, fish farming ponds, and temporary liquid retention basins.
In-depth technical answers to common B2B sourcing questions regarding tarpaulin sizing, material selection, MOQ, and export logistics.
Polyethylene (PE) tarpaulins are lightweight, highly cost-effective, 100% waterproof, and ideal for general-purpose covers, construction scaffolding, and agricultural protection (60–300 GSM). Polypropylene (PP) offers higher stiffness and tensile resistance per gram, making it suitable for heavy-duty sacks and ground covers. PVC (Polyvinyl Chloride) tarpaulins (450–900 GSM) are ultra-heavyweight, knife-coated industrial textiles with an operational lifespan exceeding 5–10 years, making them the ultimate choice for truck side curtains, permanent architectural tents, and heavy industrial containment.
In standard international tarpaulin manufacturing, the Cut Size refers to the raw sheet dimensions before hem fabrication. During edge folding over the perimeter rope and heat sealing, approximately 20cm to 30cm (4% to 6%) of material is consumed in total length and width. If your end-users require exact dimensions (e.g., exactly 20ft × 30ft), you must explicitly request "Exact Finished Size" in your OEM specification sheet so our factory cuts the raw fabric larger to accommodate hems.
For standard running stock colors (Blue/Orange, Green/Silver, Double Silver), our MOQ starts at one mixed 20ft container (approx. 10–11 metric tons). For fully customized colors, special GSM specifications, or brand logo surface printing, the MOQ is 3 metric tons per specification. Standard production lead times range from 15 to 25 days post artwork and sample approval.
Polyethylene raw resin degrades when exposed to UV sunlight. We blend premium anti-UV Masterbatch additives directly into the extruding resin melt at a strict ratio (3%–5% UV masterbatch concentration by weight). This prevents brittleness, color fading, and loss of tensile strength under intense sun exposure in climates like the Middle East, Northern Africa, and Australia. Accelerated QUV laboratory test reports are provided upon request.

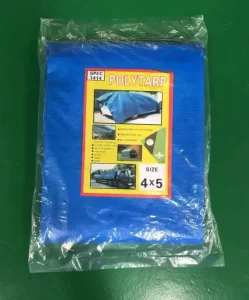

Yes. Every ready-made tarp sheet is folded, compressed, and individually packaged into a transparent polybag featuring your customized full-color branded insert card, barcode label, and care instructions. Master packages are placed into heavy-duty export cartons or high-density bale bags according to your retail or distribution requirements.

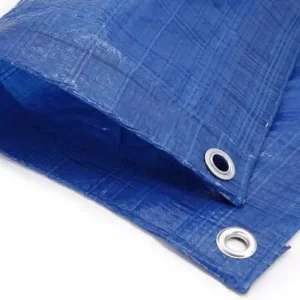

We supply lightweight rust-proof aluminum eyelets as standard. For heavy industrial, marine, or corrosive environments, we offer heavy-duty solid brass grommets, stainless steel eyelets, or high-impact molded plastic corner patches. Grommet spacing can be configured to 100 cm, 50 cm, 30 cm, or customized to your exact drawing requirements.
Explore our extended portfolio of agricultural shade cloth, fire-retardant covers, heavy blue poly tarps, and custom roll goods.
Send your required tarpaulin sizes, weight (GSM), color, grommet spacing, and target destination. Our engineering export team will provide a factory-direct quotation and container packing calculation within 24 hours.
