Explore our core engineering-grade heavy-duty tarpaulins, engineered for maximum tensile strength, weather resistance, and severe climate durability.
A rigorous examination of polymer dynamics, manufacturing scalability, structural engineering, and procurement optimization for enterprise supply chain leaders.
In the global industrial fabric market, selecting verified China heavy duty tarp suppliers & factory partners has evolved from a simple price-per-square-meter transaction into a sophisticated material science evaluation. Heavy-duty tarpaulins serve as critical protective barriers in logistics, construction, agriculture, marine, and emergency response sectors. Modern industrial buyers demand precise structural integrity, controlled polymer degradation rates, standardized thermal sealing, and strict chemical compliance.
China's industrial polymer hubs—specifically within Shandong, Jiangsu, and Zhejiang provinces—have integrated fully automated extrusion, high-speed circular weaving, ultrasonic lamination, and robotic eyelet punching. This whitepaper analyzes the technical architecture of heavy-duty Polyethylene (PE), Polypropylene (PP), and Polyvinyl Chloride (PVC) tarps, detailing manufacturing standards, climate-adaptation chemistries, localized compliance frameworks, and procurement efficiency strategies.
How state-of-the-art extrusion lines, circular looms, and double-sided extrusion coating deliver uncompromised quality and structural longevity.
Virgin High-Density Polyethylene (HDPE) resins are melted and extruded through flat-die lines. Tensile strength is maximized through hot-stretching orientation, yielding high-denier tapes with superior tear and tensile resistance before weaving.
Utilizing high-speed 6-shuttle and 8-shuttle circular looms, structural mesh counts are calibrated from 8×8 to 16×16 threads per square inch. This dense weaving matrix guarantees high burst strength and structural puncture resistance.
Woven substrate fabrics undergo dual-sided molten Low-Density Polyethylene (LDPE) extrusion coating. Blended with masterbatch pigments, UV inhibitors, and flame retardants, this process creates an impermeable 100% waterproof seal.
| Performance Parameter | Heavy-Duty PE Tarp (180 - 300 GSM) | Industrial PVC Coated Tarp (500 - 900 GSM) | Testing Standard |
|---|---|---|---|
| Tensile Strength (Warp/Weft) | 1200 N / 1100 N per 5 cm | 2800 N / 2500 N per 5 cm | ISO 13934-1 / DIN 53354 |
| Tear Resistance | 180 N / 160 N | 350 N / 320 N | ISO 4674 / DIN 53363 |
| Hydrostatic Head (Waterproofing) | > 80 kPa (Rainproof / Heavy Storm) | > 200 kPa (Submersible Impermeability) | ISO 811 / AATCC 127 |
| Temperature Tolerance | -30°C to +70°C | -40°C to +85°C | EN 1876-2 (Cold Fold Test) |
| UV Degradation Resistance | 3% - 5% HALS (up to 3 Years outdoor) | Acrylic / PVDF Lacquer (5-10 Years outdoor) | ASTM G154 / ISO 4892-2 |
| Flame Retardancy Option | CPAI-84 Class 1 / EN 13501-1 E | DIN 4102 B1 / NFPA 701 / EN 13501-1 B-s2,d0 | Vertical Flame Test |
Next-generation polymer science drives sustainable, smart, and ultra-durable flexible membrane solutions for 2025 and beyond.
Integrating nano-Titanium Dioxide and Hindered Amine Light Stabilizers (HALS) into molten polyolefin coatings to achieve over 5,000 hours of continuous UV accelerated weathering with zero polymer embrittlement.
Replacing complex multi-layer resin blends with 100% monomaterial Polyethylene configurations (HDPE fabric + LDPE coating), enabling 100% mechanical recyclability to align with EU ESG directives.
Dual PVDF/Acrylic topcoat surface treatments applied to industrial PVC tarpaulins prevent dirt accumulation, resist chemical pollutants, and preserve high solar reflectance over extended outdoor service life.
Pioneering fluorocarbon-free (PFAS-free) water-repellent topcoats that comply with emerging US state and European chemical restrictions without compromising hydrostatic pressure performance.
Custom-engineered protective fabric solutions built to perform in the world's most demanding physical environments.
Heavy-duty flame-retardant PE scaffolding sheets (150-250 GSM) feature reinforced eyelet bands and high tear strength, shielding site personnel from wind and rain while preventing tool debris drop-outs during high-rise building construction.
Precision-tailored 650-900 GSM PVC truck side curtains and flatbed tarps engineered with heat-welded seams, reinforced corners, and anti-abrasion patches withstand continuous highway wind vibration and harsh weather exposure.

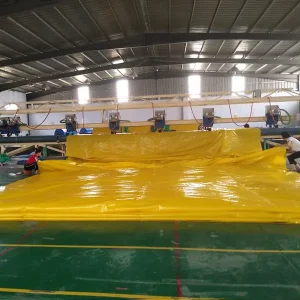

Extra heavy-duty 16 mil yellow hay covers with heavy-duty web handles, heat-sealed hems, and 5% UV masterbatch additives preserve forage nutritional value, preventing mold growth and moisture penetration across multi-year field storage.
Multi-layer thermal curing blankets combine closed-cell PE foam insulation cores with double-faced waterproof poly tarps, maintaining hydration heat during winter concrete pours in civil engineering projects.

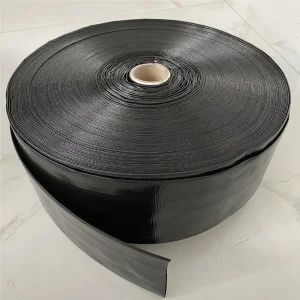

Heavy-duty PE lay-flat irrigation hoses and pond liners operating at 2-4 bar working pressure provide light-weight, puncture-resistant fluid transport for agricultural main belts and emergency mine dewatering operations.
Pre-engineered white/black UV-stabilized shelter tarpaulins meeting UNHCR, UNICEF, and Red Cross specifications deliver rapid, lightweight, storm-proof temporary housing solutions in disaster recovery zones worldwide.
Eliminate procurement risk with factory-direct compliance certification, climate-tailored chemistries, and strict batch-level testing.
Enterprise buyers sourcing from China must ensure raw materials and finished products adhere to target market chemical and environmental regulations. Top-tier manufacturers maintain full transparency across raw material supply chains:
Full compliance with EU REACH Regulation (EC) No 1907/2006, certifying tarpaulin products are free from Substances of Very High Concern (SVHC), phthalates, and heavy metals.
Formulations tailored for North American retail channels, ensuring lead-free, low-VOC, and non-toxic plasticizers in PVC and PE coating lines.
Factories operating under ISO 9001:2015 quality management and ISO 14001:2015 environmental standards, ensuring batch-to-batch consistency and full material traceability.
Prior to container loading at Qingdao or Shanghai ports, heavy-duty tarp orders undergo rigorous multi-stage quality control testing. In-house testing laboratories inspect fabric weight (GSM verification), warp/weft tensile strength, tear propagation resistance, thermal seam seal integrity, and eyelet pull-out resistance (exceeding 500 N force). Third-party inspection reports from SGS, BV, or TÜV are routinely provided alongside certificates of origin and shipping documentation.
Direct technical answers to common questions raised by procurement managers, importers, and industrial distributors.
True heavy-duty performance relies on three core metrics: Fabric Weight (GSM), Woven Mesh Count, and Polymer Virginity. For Polyethylene (PE) tarps, heavy-duty status starts at 180 GSM up to 300 GSM, utilizing 12×12 or 14×14 high-density weave patterns made from 100% virgin HDPE resins. For PVC tarps, heavy-duty specs range from 500 GSM to 900 GSM with a high-tenacity 1000D polyester scrim substrate. Low-quality tarps often substitute recycled resin, causing premature UV cracking and low tear strength.
Unprotected polyethylene degrades rapidly when exposed to ultraviolet radiation, breaking polymer chains and causing embrittlement. Factory-added Hindered Amine Light Stabilizers (HALS) and Carbon Black or Titanium Dioxide pigments neutralize photo-oxidation free radicals. Adding 3% to 5% high-grade UV masterbatch extends outdoor service life from 3-6 months to 3-5 years, even under intense Middle Eastern, Australian, or Arizona solar irradiance.
For standard stocked colorways and weights, mixed-container orders (20ft or 40ft HQ) are supported. For custom specifications (specific colors, custom GSM, brand logos, custom grommet spacing, and retail packaging), factory MOQs typically start at 3 to 5 metric tons per specification. Standard production lead times range from 15 to 25 days following pre-production sample approval and artwork sign-off.

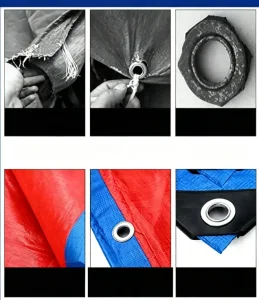

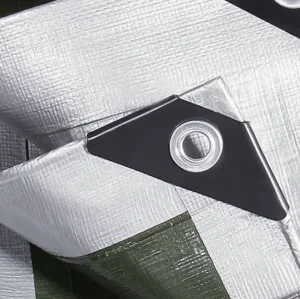

Eyelet pull-out is the primary failure mode of industrial tarpaulins under high wind loads. Quality China factories reinforce tarp perimeters by heat-sealing a continuous PP rope inside a double-folded hem. High-stress corners receive molded black plastic triangular patches or heavy-duty rubber corner blocks. Rustproof aluminum, solid brass, or stainless steel eyelets are then pneumatically riveted through all reinforced layers at 50 cm or 100 cm intervals.
Comprehensive OEM services include customized finished sheet sizes (cut size vs. actual finished size control), dual-tone color combinations (e.g., Brown/Green, Blue/Silver, Yellow/Black), flexographic surface printing of corporate logos/warning labels, barcoded retail polybags, heavy-duty display cartons, and custom inner core roll packaging for commercial converters.
Discover our specialized range of striped tarps, ultra-heavyweight sheets, fireproof PVC covers, and dual-tone protective membranes.
Submit your target application, required GSM, size dimensions, and destination port. Our engineering team provides technical datasheets, pricing matrices, and pre-production samples within 24 hours.
