Explore our top-tier manufacturing lines featuring reinforced PE, PP, and heavy-duty PVC tarpaulins engineered specifically for high-frequency transport, weather sealing, and commercial grain protection.
Grain logistics represents one of the most critical legs of the global agricultural supply chain. Bulk haulage of wheat, corn, soybeans, canola, and barley demands complete environmental containment. In transit, exposure to atmospheric rain, road spray, wind whip, and solar UV radiation poses immediate threats of cargo degradation, mold growth, mycotoxin contamination, and financial rejection at grain elevators.
Grain elevators enforce stringent moisture threshold limits (typically 13.5% to 15.0% for corn and wheat). A single seam leakage during a 500-mile haul in torrential rain can elevate grain moisture levels beyond acceptable caps, resulting in severe price docking or total shipment rejection. Premium grain trailer tarps utilize continuous double-side extrusion lamination to guarantee 100% water impermeability under extreme hydrostatic pressure.
Trailer tarps operate under harsh mechanical stress. As trucks travel at speeds of 60–70 mph (100 km/h), highway wind flutter induces rapid fatigue at contact points against trailer bows and side walls. Factory-engineered tarps must combine high denier woven core matrices (HDPE/PP or high-tenacity polyester) with abrasion-resistant polymer coatings to prevent tears, punctures, and structural delamination.
Commercial requirements for grain trailer tarpaulins vary significantly across regional agricultural hubs, transport trailer geometries, and local climate realities. B2B buyers and fleet procurement officers must align material choices with specific operational dynamics.
Dominated by side-to-side roll tarp systems on dual-hopper trailers (Wilson, Timpte, Cornhusker). Demands standardized roll tarp lengths (from 24 ft to 53 ft), heavy-duty 18 oz to 22 oz PVC vinyl or 270+ GSM reinforced PE, heat-welded pockets for roll tubes, and reinforced front/rear caps to withstand intense highway drag and freezing winters.
In Brazil and Argentina, grain transport relies heavily on double-trailer road trains ("B-Double" / "Bitrem") navigating dusty unpaved routes and extreme solar heat. Fleet buyers require ultra-high UV stabilizer packages (3–5% HALS Hindered Amine Light Stabilizers) to prevent polymer embrittlement during prolonged exposure in equatorial regions.
European Union transport fleets (operating tipper trailers and side-curtains) enforce strict environmental safety. Procurement specifications necessitate compliance with REACH SVHC, RoHS flame retardancy standards (DIN 75200 / ISO 3795), and recyclable low-lead chemical formulations without compromising tear strength.
Commercial fleet buyers evaluate tarp performance through TCO rather than initial roll purchase price.
TCO = Purchase Price + (Maintenance & Repair Labor) + (Cargo Spoilage Claims) - (Fuel Efficiency Savings via Aerodynamic Fit).
By selecting factory-direct high-density PE and knife-coated PVC materials with engineered reinforcement zones, fleet operators achieve up to 40% reduction in annual maintenance downtime and eliminate cargo moisture damage claims.
To deliver consistent quality across 20,000 metric tons of annual output, Linyi Xinshengyang Plastic Products Co., Ltd. controls every manufacturing phase—from polymer resin extrusion to hot-air seam fusion and automated eyelet installation.
| Technical Metric | High-Density PE (HDPE/LDPE) | PP Woven Tarpaulins | PVC Coated Vinyl (Heavy Duty) |
|---|---|---|---|
| Weight Range (GSM / Oz) | 60 GSM – 300 GSM (1.8 oz – 9 oz) | 100 GSM – 260 GSM (3 oz – 8 oz) | 450 GSM – 900 GSM (14 oz – 26 oz) |
| Tensile Strength (Warp / Weft) | 850 N / 950 N per 5 cm | 1100 N / 1250 N per 5 cm | 2500 N / 2800 N per 5 cm |
| Tear Resistance (Trapezoidal) | High Flex-Fold Toughness | Ultra-Stiff Tensile Modulus | Extreme Puncture Resistance |
| Hydrostatic Pressure | > 70 kPa Water Column | > 60 kPa Water Column | > 120 kPa Water Column |
| UV Weathering Life | 2 – 5 Years (3-5% UV Masterbatch) | 1.5 – 3 Years (UV Treated) | 5 – 8 Years (Fluorocarbon Coated) |
| Primary Target Application | Roll Tarps, Agricultural Covers, Grain Storage | Stiff Ground Sheets, Liner Tarps | Heavy Duty Hopper Bottom Side Curtains |
Virgin High-Density Polyethylene (HDPE) pellets are blended with proprietary UV inhibitors and color masterbatches. Extruded flat tapes undergo high-ratio hot-stretching to align polymer molecular chains, securing target deniers from 600D up to 1500D with ultra-low elongation specs.
Equipped with modern circular looms and water-jet weaving machinery, the factory produces uniform base fabrics operating at mesh densities of 8x8, 10x10, 12x12, and 14x14 per square inch. Perfect structural squareness eliminates diagonal distortion under high tensioning.
Woven base fabrics pass through dual-side molten Low-Density Polyethylene (LDPE) or liquid PVC knife-coating units. Micro-calibrated roller pressures guarantee seamless mechanical bonding, creating a non-porous, glossy or matte waterproof barrier resistant to delamination.
Operating under the commercial brand Star Tarpaulins since 2006, our 30,000 square meter facility located in Wanggou Industrial Park (Lanshan District, Linyi City, Shandong Province, China) represents a fully vertically integrated manufacturing ecosystem.
Every production roll is subjected to strict 8-step quality protocols. Laboratory technicians inspect warp/weft tensile strength, trapezoidal tear resistance, hydrostatic head capacity, and color fastness. Batch tracking codes are stamped onto hem borders, providing 100% audit transparency from raw polymer bags to destination container ports.

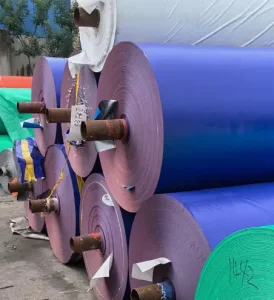

We supply finished tarp sheets and continuous converter rolls. Finishing options include ultrasonic seam welding, high-frequency PVC welding, PP rope-in-hem perimeter reinforcement, molded triangular plastic corner blocks, and heavy-duty brass/aluminum eyelets installed at customized 50 cm or 100 cm pitch intervals.
We streamline international trade for importers, hardware distributors, industrial converters, and commercial fleet managers across the Middle East, Africa, North/South America, Europe, and Oceania.
To assist regional distributors in maximizing cash flow and inventory turnover, we support mixed-container orders. Combine PE standard tarps, heavy PVC roll stocks, weed barrier fabrics, and PE layflat hoses within a single 20ft or 40ft High Cube container shipment.
Complete OEM packaging solutions including individualized polybags with customized color insert cards, retail UPC/EAN barcodes, display carton design, and heavy-duty export bales wrapped in protective woven poly sheets for seaworthy transit.
Full documentation support including Certificates of Origin (Form A, Form E, CO), SGS / Intertek / BV pre-shipment inspection verification, REACH chemical safety compliance statements, and Bill of Lading clearance under FOB Qingdao, CFR, or CIF terms.
Explore our extended wholesale range featuring high-grammage truck covers, striped multi-purpose sheets, reinforced utility tarpaulins, and commercial grain protection materials.
Get authoritative insights from our senior polymer engineers regarding material specification selection, climatic adaptation, and container logistics.
Partner directly with China's premier tarpaulin extrusion and weaving factory. Contact our export engineering team for technical spec sheets, pre-production physical samples, and instant container freight quotations.
