Explore our engineered line of sun-reflective, UV-stabilized, and waterproof woven polyolefin sheets manufactured at our Linyi industrial complex.
Understanding the physics of Near-Infrared (NIR) specular reflection, albedo enhancement, and polymer degradation prevention under extreme solar irradiance.
Standard tarpaulins absorb up to 85% of solar radiation, converting light into heat energy that transfers into stored cargo or structures. Advanced sun reflective tarps engineered in China utilize high-purity aluminum vacuum metallization or titanium dioxide (TiO₂) pigmented lamination to bounce back up to 92% of solar heat gain across the 700nm–2500nm spectrum. This drastically lowers ambient temperatures beneath the tarp by 10°C to 18°C.
Polyolefin base weaves (HDPE/PP) suffer photo-oxidation when exposed to UV-A and UV-B wavelengths. Leading Chinese manufacturers incorporate tailored dosage packages of Hindered Amine Light Stabilizers (HALS 944 / HALS 119) at a 3% to 5% masterbatch ratio. This molecular stabilizer captures free radicals generated by radiation, extending field performance in equatorial zones (like the Middle East, Australia, and Sub-Saharan Africa) to over 5 years of continuous outdoor duty.
For industrial cold chains, grain storage bunkers, and livestock shelters, utilizing high-albedo silver tarps provides direct ROI. By preventing micro-climate heat buildup, logistics operators reduce mechanical refrigeration fuel consumption by up to 22%, while agricultural facilities prevent heat-stress mortality in livestock and spore proliferation in stored dry grain.
Comparative physical, thermal, and mechanical parameters of modern sun-reflective polyolefin tarpaulins manufactured in Linyi, Shandong, China.
| Specification Parameter | Lightweight Commercial (90–140 GSM) | Industrial Grade (160–240 GSM) | Heavy-Duty Mine/Truck (270–350 GSM) | Metallized PVC Coated (450–700 GSM) |
|---|---|---|---|---|
| Base Polymer & Mesh | HDPE Woven (8x8 / 10x10) | HDPE Woven (12x12 / 14x14) | HDPE / PP Grid (14x14 High Tenacity) | 1000D x 1000D Polyester Core |
| Reflective Surface Treatment | Double-side LDPE Coated (Silver/Blue) | Silver/White Dual LDPE Film Coating | Vapor Deposited Aluminum Lamination | Specular PVDF / Lacquered Silver PVC |
| Solar Reflectance Index (SRI) | 78 – 84 SRI | 86 – 92 SRI | 94 – 98 SRI | 90 – 96 SRI |
| Tensile Strength (ASTM D751) | 600 N / 5cm (Warp) | 1100 N / 5cm (Warp) | 1750 N / 5cm (Warp) | 2800 N / 5cm (Warp) |
| Tear Resistance (ASTM D1424) | 80 N | 160 N | 290 N | 450 N |
| Hydrostatic Head (ISO 811) | > 80 kPa (100% Waterproof) | > 150 kPa (100% Waterproof) | > 250 kPa (100% Waterproof) | > 400 kPa (100% Waterproof) |
| Operating Temperature Range | -30°C to +70°C | -40°C to +80°C | -40°C to +90°C | -40°C to +105°C (Flame Retardant) |
How B2B procurement leaders across logistics, civil engineering, mining, and agriculture deploy sun-reflective tarps in harsh environmental conditions.
Flatbed trailers transporting heat-sensitive chemicals, rubber, electronics, or produce utilize 270GSM+ silver/black PE truck tarpaulins. The outer silver skin reflects direct overhead sunlight, while the black bottom layer prevents internal thermal radiation reflection, safeguarding cargo integrity across continental transit corridors.
Large-scale construction projects in desert regions employ sun-reflective tarps for temporary warehousing structures, Rubb hall enclosures, and concrete wet-curing blanks. Maintaining lower surface hydration temperatures during curing prevents micro-cracking in structural concrete foundations.
Grain bunkers and hay stacks exposed to intense weather benefit from reflective agricultural tarps. Preventing condensation cycles under the tarp stops mold development, maintaining feed grade quality and saving agricultural cooperatives hundreds of thousands of dollars in spoilage risks.

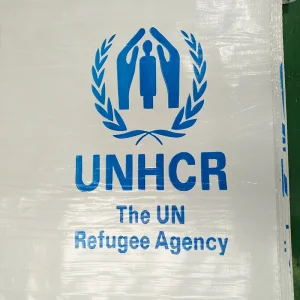

Disaster relief agencies require rapid-deployment shelter tarpaulins that protect displaced populations from both torrential rain and punishing sun radiation. Lightweight 100–140 GSM white/silver poly tarps are standard stock for global humanitarian relief fleets.
Analyzing the structural supply chain efficiencies, vertical integration, and cost-to-quality ratios of Shandong’s premier plastic weaving industrial cluster.
From petrochemical polymer granule compounding to high-speed tape yarn extrusion, water-jet weaving, double-side extrusion lamination, and automated ultrasonic eyelet welding—Linyi factories maintain complete operational autonomy. Eliminating third-party sub-contracting ensures rigid GSM tolerance control (±3%) and consistent batch-to-batch color stabilization.
Global distributors demand tailored parameters. OEM capabilities include custom roll width extrusion from 2 meters up to 6 meters seamlessly (and up to 30 meters via thermal heat-sealing), brass or reinforced poly corner eyelet spacing down to 50cm intervals, flexographic logo surface printing up to 4 colors, and specialized flame retardancy additions (UL94-V0 standard compliance).
Situated in close proximity to Qingdao Port and Lianyungang Port, Chinese manufacturing hubs provide streamlined ocean freight logistics. Freight efficiency is maximized through high-density hydraulic compression baling, allowing up to 28 tons of folded tarp sheets or master rolls to fit into a single 40ft High Cube (HQ) container, lowering landed transport cost per square meter.
Expert technical insights to guide bulk purchasing managers, commercial distributors, and OEM buyers in specifying sun reflective tarps.
Browse additional wholesale specifications including anti-UV mesh, grid covers, white multi-purpose sheets, and heavy-duty industrial rolls.
Contact our senior engineering team to discuss custom GSM requirements, UV formulations, container loading plans, and wholesale distributor pricing.
Request Custom RFQ & Samples
